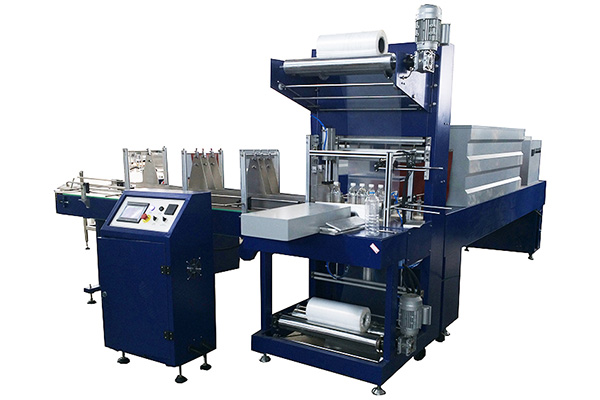

Auto Sealing and Shrink Wrap Machine
Applications

The shrink wrapping machine is specially designed for the packaging of mineral water, beverage, wine, beer, infusion medicine bottle, featuring stable operation, tight and ordered packaging. It can serve as a pushing machine when high speed is demanded.

Features

1. The shrink wrap machine introduces imported PLC procedure automatic control, stable performance, and accurate control.
2. It features fully-automatic feeding, tube management shrinkage, and cooling shape-fixing flow.
3. Film transportation is adopted with sensor switch, which gives a precise control of film length and as a result, reduced wastage could be realized.
4. Elector motor is adopted with imported transducer, realizing unlimited speed regulating.
5. Advanced swirl-wind circulative structure, three-layer insulation treatment, and energy conservation;
6. Reinforced cooling shape-fixing channel helps to accelerate pack-shaping, and provides much convenience for storage and transportation.

Technical Parameters
Model JND-150A
Working Power AC380V 50/60HZ
Total Power 20KW
Packing Speed 8-15PACKAGES/MIN
Max. Packing Size L600*W400*H350 mm
Pack type Film
Packs Length:200-530mm; Width:110-350mm; Height:70-360mm
Film Material:LDPE Thickness:30-150um
Working Pressure 0.6-0.8MPA
External Dimension L5050*W3300*H2200mm
Main Machine L1180*W1080*H2370 mm
Thermo-wind Stove L3890*W1050*H2040 mm
