Stretch Wrapper

Stretch Wrapper
  • Home
  • Products
  • Equipment
  • Packing Equipment
  • Stretch Wrapper
Stretch Wrapper

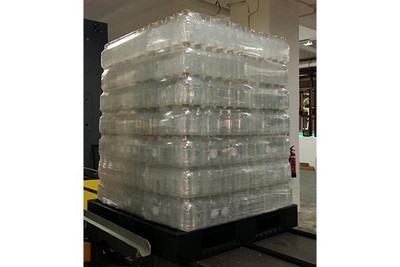

The pallet wrapper is suitable for wrapping both stable and unstable load, such as the container, spare parts, and bulk cargo. The stretch wrapping machine is widely seen in glassware, hardware, electronics, paper, ceramics, chemicals, food, beverage, building materials and other industries.

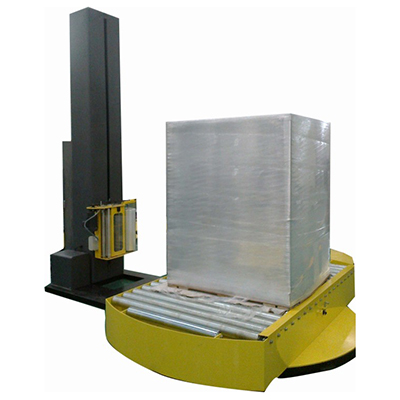

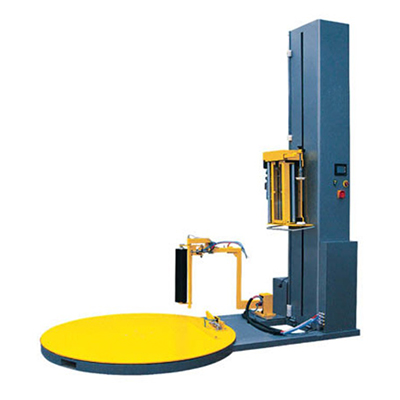

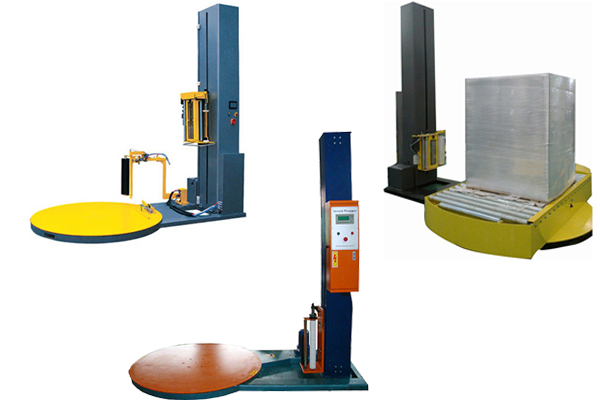

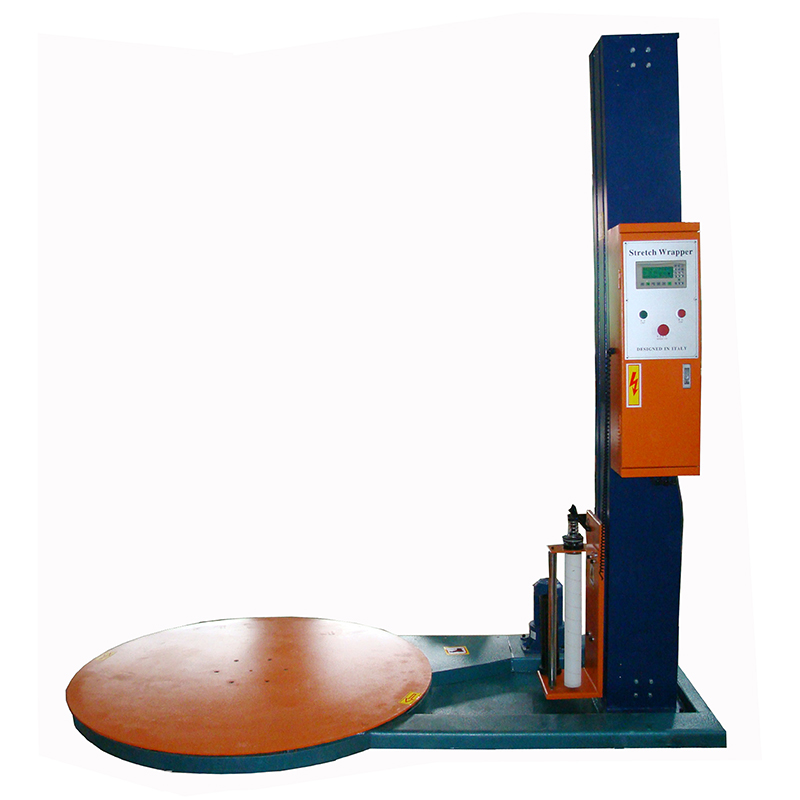

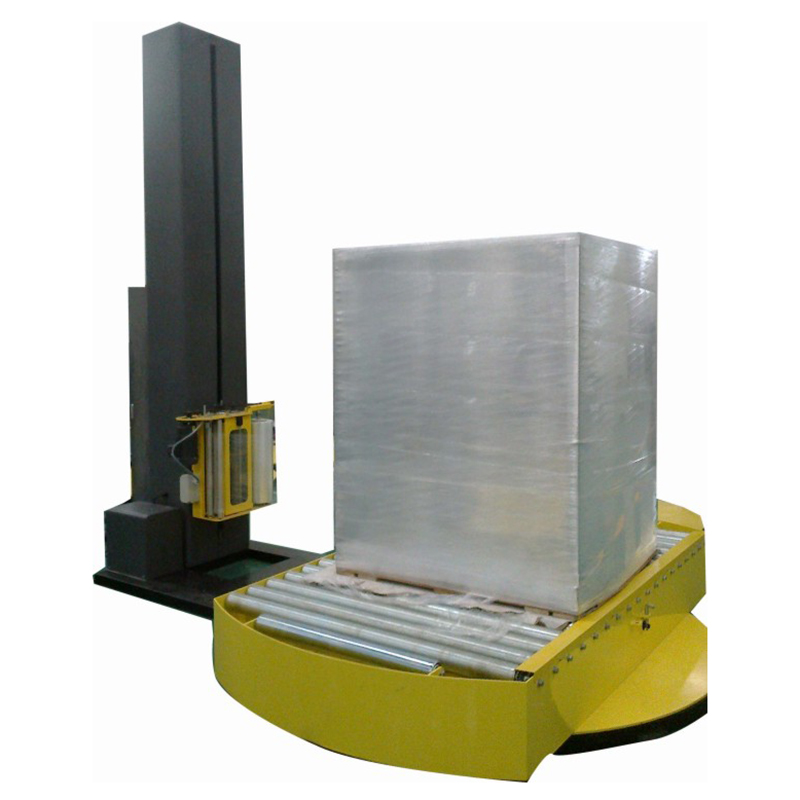

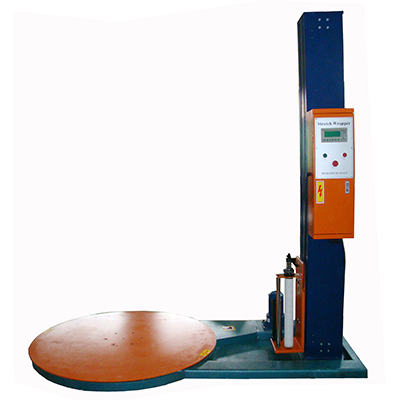

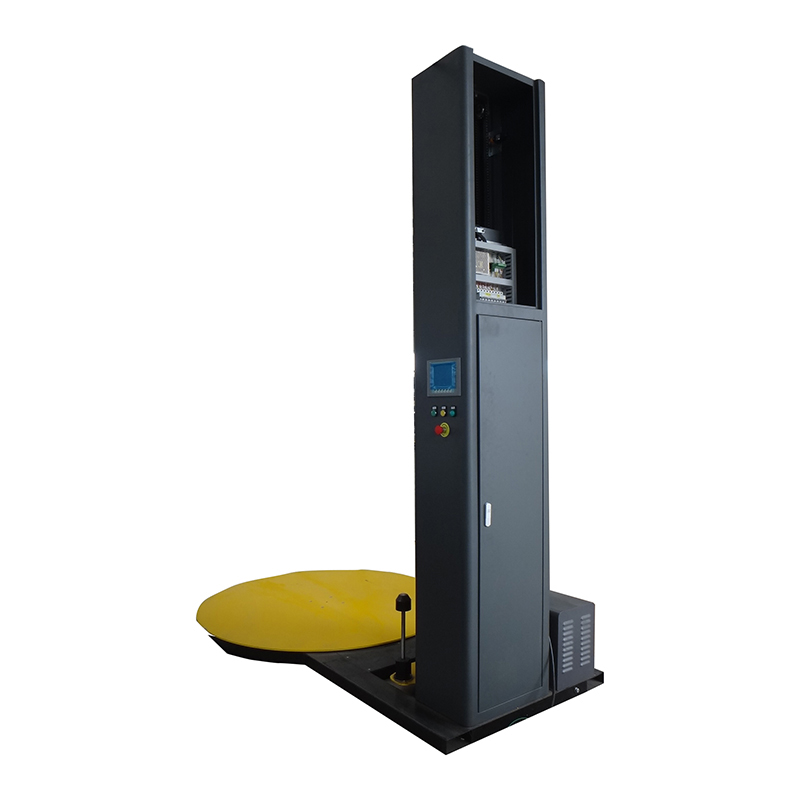

Shown on this page is a turntable pallet wrapper, one of the three kinds of stretch wrappers. This pallet wrapping machine is an ideal choice when it comes to improving packaging efficiency and safety as well as reducing loss during product transit. A remote control is available with the pallet wrapper for safe wrapping operation from a distance.

Technical Parameters
Wrap Size (L × W) (500-1200) × (500-1200)mm
Wrap Height (mm) L type: 1800mm H type: 2400mm
Wrapping Efficiency 20-50 Pallets/Hour
Turntable Speed 0-12 rpm Adjustable turntable speed
Turntable Height 78mm
Turntable Diameter 1650mm
Turntable weight capacity (max.) 2000kg
Film Carriage Power pre-Stretch system up to 350% with adjustable speed
Control system PLC
Cut & clamp unit Pneumatic Control; Automatic Film Attaching, Cutting And Wiping
Pneumatic System 0.6-1.0 Mpa
Total weight (kg) 900Kg
Machine Dimension L Type:2745×1650×2530 H Type: 2745×1650×3310(mm)
Power Turntable:0.75kw Film carriage:0.35kw Lift system: 0.37kw`/AC220V
Voltage Single Phase 220V/50HZ/20A
Inquiry
Gallery
  • Gallery
  • Gallery
  • Gallery
  • Gallery

Service
  • ServicePre-Sale Service
  • ServiceAfter Sales Service
Tags
pallet wrapper stretch wrapper pallet wrapping machine turntable pallet wrapper
