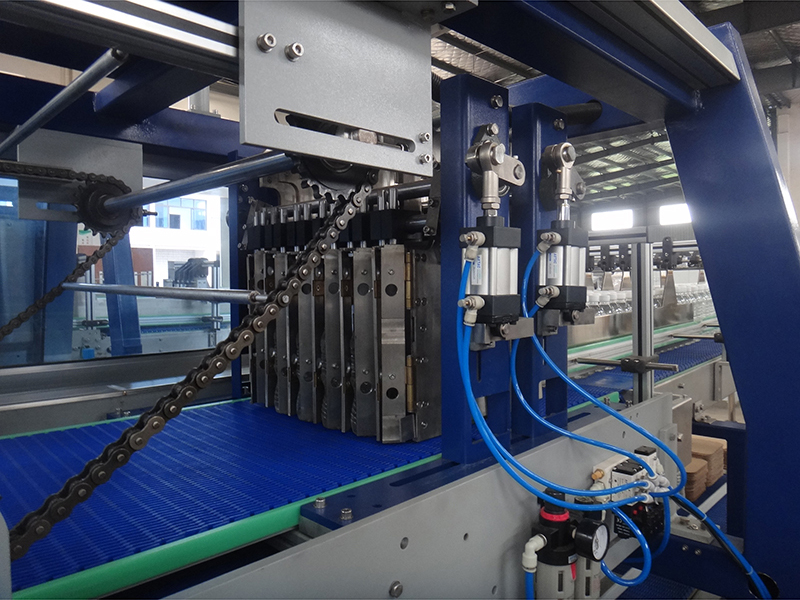

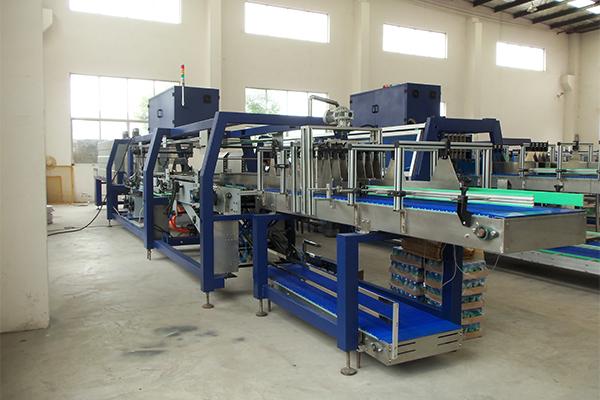

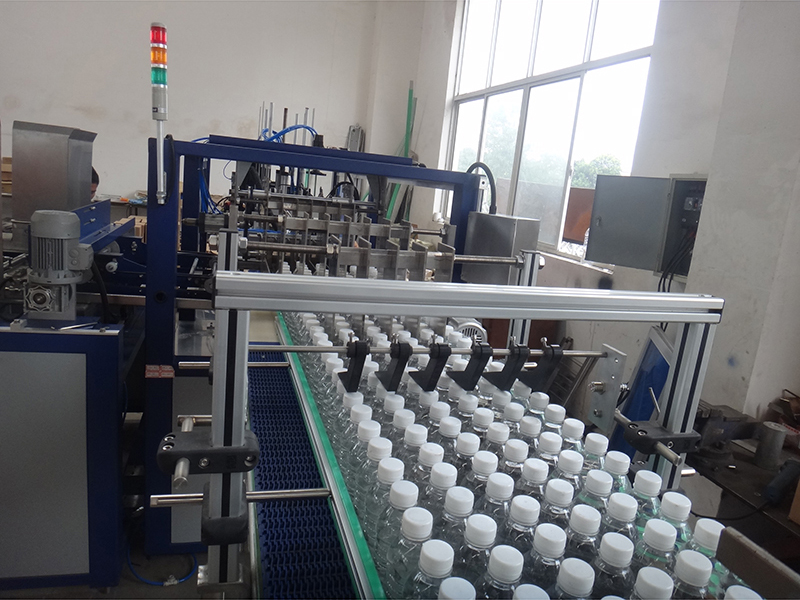

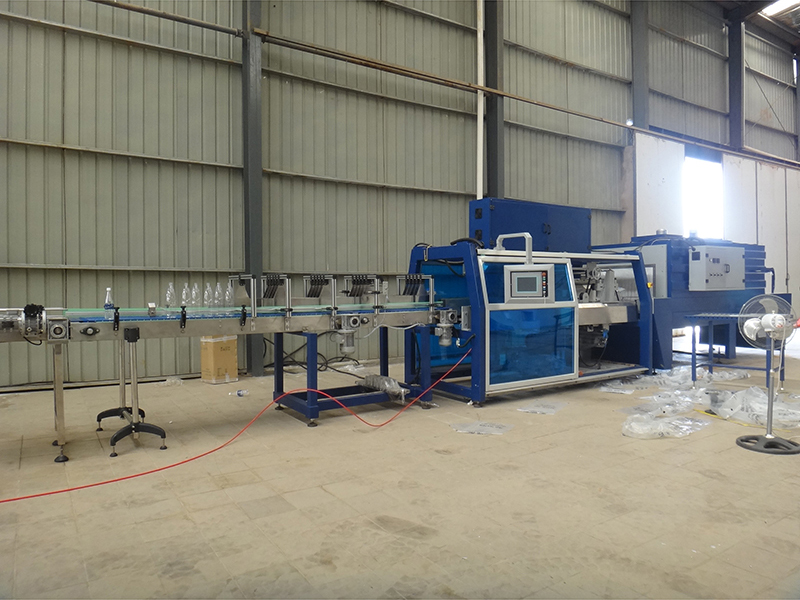

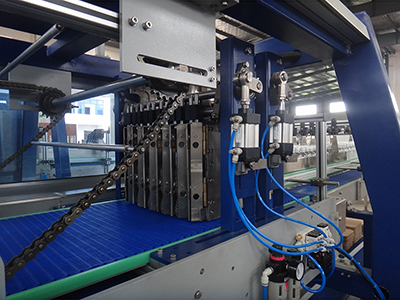

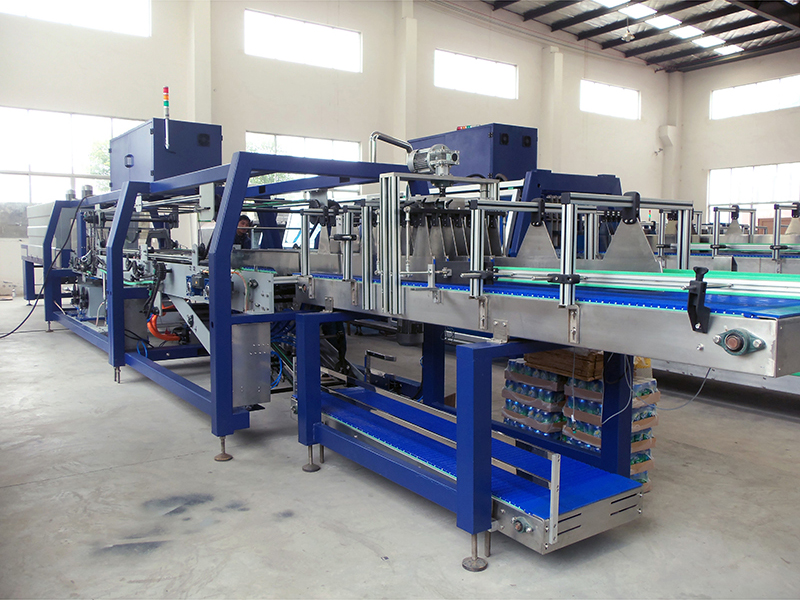

Automatic Pallet Shrink Wrapping Machine
Product introduction

• Automatic pallet shrink wrapping machine is designed to wrap varied bottles with different filling materials, such as beer, beverage, food, and with different bottle materials, like glass and plastic.
• Designed with different models.
• Single linear shrink wrapper can pack 10-45 cartons per minute.

The principle of operation

• Concise structure, attractive appearance, unique design, convenient to maintain.
• Big screen LCD display offers both English and Chinese operating interface.
• Air expanding shaft is fitted into the core of the shrink wrap roll for quick, easy roll change in a couple of minutes.
• Web tension is precisely controlled to ensure flat, even shrink wrap surface. A high level of cutting accuracy makes sure each shrink film is cut in a tidy manner.
• Super servo controlling technology can keep each fracture precision in-phase, and keep transmission work stability.
• Heating case fracture is reasonable, heat insulation and warm keeping, temperature controlling precision is highly.
• Matched with German Siemens, German p+f, Japan SMC, Italy Motuoliao, and other world famous controlling component, so the working condition is steady.
• Mechanical drive part is made pf heat treated stainless steel, medium carbon steel and etc., so fine surface coating is applied, which leads to an excellent rust resistance.
• All electrical and pneumatic elements of the automatic shrink wrap machine are built to the latest CE requirements
• When there is a power outage, manpower rotary conveyor belt device could be activated for easier moving for product from inside.

Technical Parameters
Model JND-500A
Power AC380V 50/60HZ 37.5KW
Wrapping Speed 10-12 bags/Min
Pack type film/tray
Containers diameter:50-110mm height:70-360mm
Packs length:200-530mm width:110-350mm height:70-360mm
Pad size 3mm thickness
Work Pressure 0.6-0.8Mpa
Film material :LDPE thickness:30-100um Max. Film roll diameter:500mm; film reel core diameter:76mm
Overall size L10069*W1670*H2480(mm)
Inquiry
Gallery
  • Gallery
  • Gallery
  • Gallery
  • Gallery

Service
  • ServicePre-Sale Service
  • ServiceAfter Sales Service
Tags
Automatic pallet shrink wrapping machine pallet packaging machines pallet wrappers automatic pallet wrapper provider
Other Products

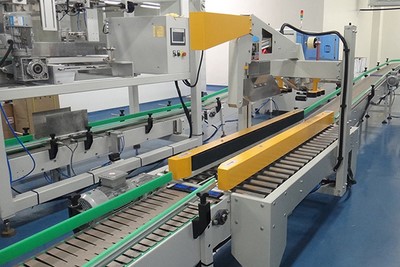

    1. Carton Erecting Sealing Machine
    2. Carton Erecting Sealing Machine

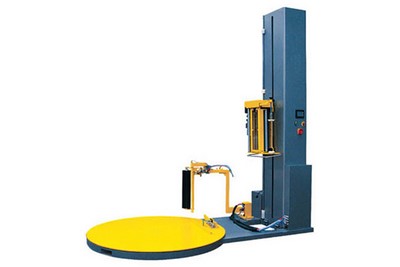

    1. Stretch Wrapper
    2. Stretch Wrapper

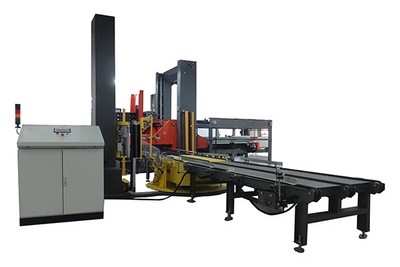

    1. Palletizer Machine
    2. Palletizer Machine

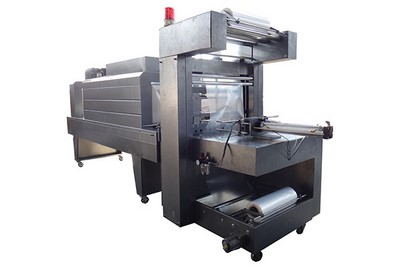

    1. Semi-Auto Sealing and Shrink Wrapping Machine
