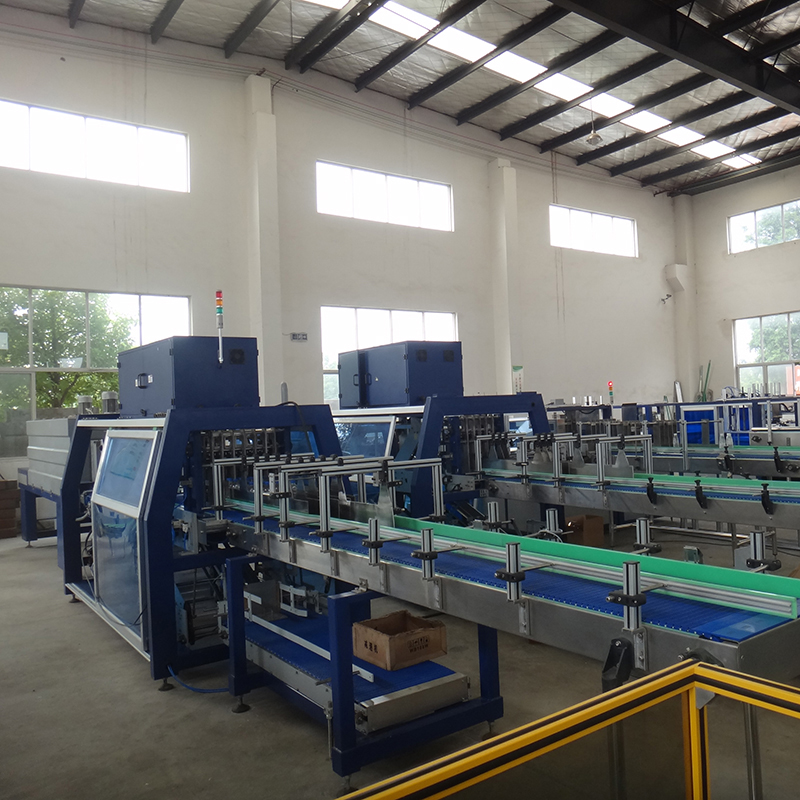

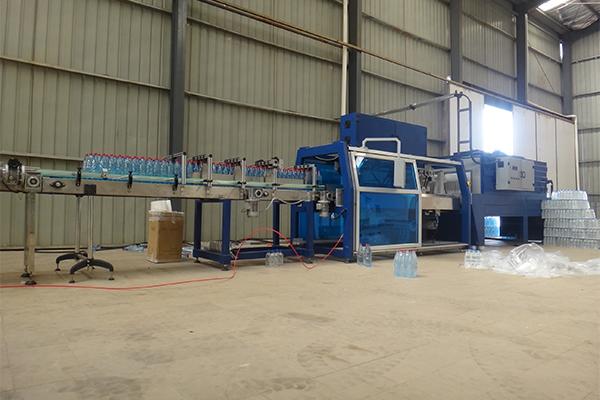

• JND series shrink wrap machine is designed to wrap varied bottles with different filling materials, such as beer,
beverage, food, and with different bottle materials, like glass and plastic.
• Designed with different models.
• Single linear shrink wrapper can pack 10-45 cartons per minute.
• Concise structure, attractive appearance, unique design, convenient to maintain.
• Big screen LCD display offers both English and Chinese operating interface.
• Air expanding shaft is fitted into the core of the shrink wrap roll for quick, easy roll change in a couple of
minutes.
• Web tension is precisely controlled to ensure flat, even shrink wrap surface. A high level of cutting accuracy
makes sure each shrink film is cut in a tidy manner.
• Super servo controlling technology can keep each fracture precision in-phase, and keep transmission work
stability.
• Heating case fracture is reasonable, heat insulation and warm keeping, temperature controlling precision is
highly.
• Matched with German Siemens, German p+f, Japan SMC, Italy Motuoliao, and other world famous controlling component,
so the working condition is steady.
• Mechanical drive part is made pf heat treated stainless steel, medium carbon steel and etc., so fine surface
coating is applied, which leads to an excellent rust resistance.
• All electrical and pneumatic elements of the automatic shrink wrap machine are built to the latest CE
requirements
• When there is a power outage, manpower rotary conveyor belt device could be activated for easier moving for
product from inside.
Model | JND-450A |
Power | AC380V 50/60HZ 48KW |
Packing Speed | 20-45 Packages/Min |
Pack type | film/pad film |
Containers | diameter:50-110mm height:70-360mm |
Packs | length:200-530mm width:110-350mm height:70-360mm |
Pad size | 3mm thickness |
Work Pressure | 0.6-0.8Mpa |
Film | material :LDPE thickness:30-100um Max:Film reel diameter:500mm;film reel core diameter:76mm |
Overall size | L11850*W1215*H2150(mm) |
